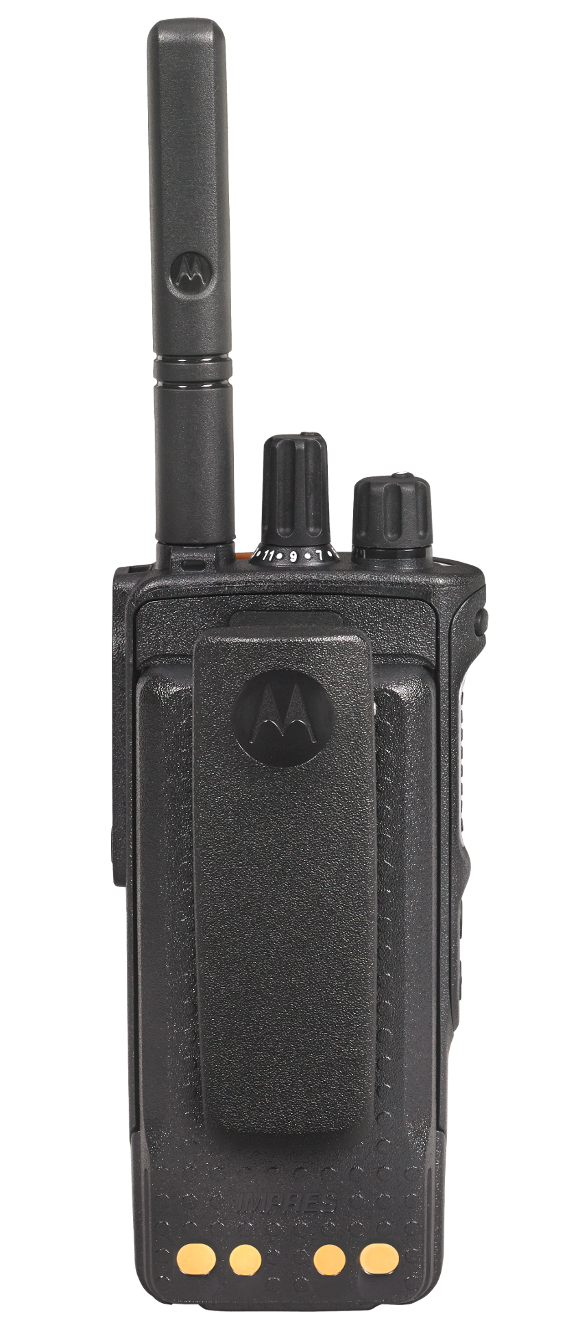

DP4400e / DP4401e

DMR

The DP4400e / DP4401e is easy to use and features 32 channel capacity, three programmable buttons, dedicated emergency button, IP68 specifications for submersibility and FM or TIA intrinsically safe options

DP4400e / DP4401e
Integrated accelerometer for optional Man Down

Bluetooth® 4.0

Indoor location tracking

Integrated Wi-Fi®

Over-the-air software updates

Best-in-Class Audio

Loud front-facing speaker and Intelligent Audio feature that automatically adjusts the radio volume according the environment’s noise level

Text Messaging

Send preprogrammed messages to team members when radio communications need to be delivered without interrupting workers or guests

Integrated GPS (option)

Locate mobile work teams using integrated GPS

Emergency Button

Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation

Security

Three levels of scrambling or encryption built-in for increased security: 16-bit Basic Privacy, 40-bit Enhanced Privacy or 256-bit AES256 encryption.

Transmit Interrupt

Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.

IP Site Connect

A digital solution that uses the internet to extend the voice and data capabilities of MOTOTRBO. Use it to link up to 15 sites for communication among geographically dispersed locations, to create wide area coverage or enhance coverage at a single site with physical barriers

Capacity Plus

Single-site digital trunking system that maximizes the capacity of your MOTOTRBO system. Use it to enable a high volume of voice and data communication for over a thousand users at a single site without adding new frequencies

Linked Capacity Plus

Linked Capacity Plus is a multi-site digital trunking system for the MOTOTRBO platform. It leverages the high capacity of Capacity Plus, with the wide area coverage capabilities of IP Site Connect to keep your staff at various locations connected with an affordable high-capacity, wide-area trunking solution

Rugged, Reliable Design

Tightly sealed against wind and dust, and submersible in up to 2 m of water for 2 hrs (IP68 rated).

Productivity-enhancing Data Applications

Features the industry’s largest Application Developer Programme to enable a wide variety of customized applications including: location tracking, email gateways, dispatch, telephony, man-down and work order ticket management

Intrinsic Safety

DP4000e Series radios are certified to meet the requirements for Factory Mutual (FM) and UL TIA4950 when properly equipped with a relevant Motorola battery option



General characteristics

Model Number DP4400e / DP4401e
Band/Frequency VHF: 136-174 MHz; 300: 300-360, 350-400 MHz UHF: 403-527 MHz
High power output (VHF) 1/5 W; (UHF) 1/4 W
Channel Capacity 32
Dimensions 130,3 x 55,2 x 41,1 mm
Weight, Radio + Standard Battery 290 g
Power Supply (Nominal) 7.5 V
Battery Life, Standard 28 hrs
Packaging test MIL STD 810 C/D/E/F/G и IP68
